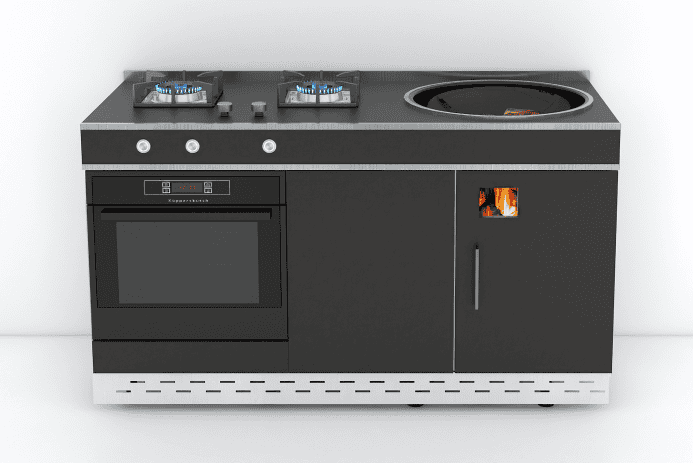

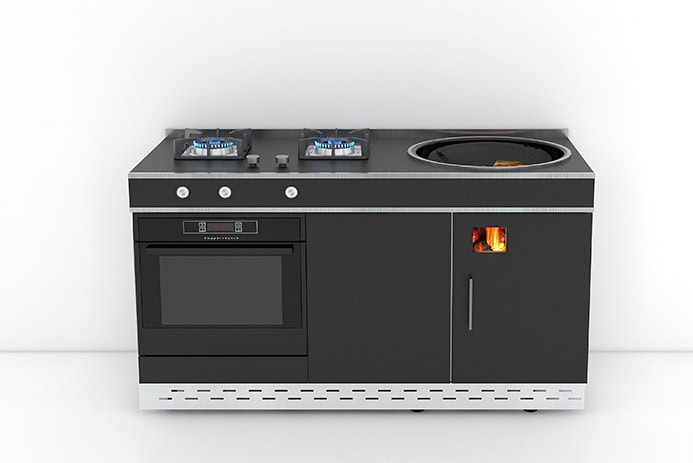

Features of the Rongjie/CF wood and gas hybrid cooking stove with electric oven (HO138)
1. One-touch automatic wood stove ignition system: no need for kindling or fire-starting materials. Easy to use, even for elderly individuals operating the wood-gas combination stove.
2. High cooking efficiency: Just a few pieces of firewood are enough to cook two pots of food—no need for someone to add wood or manage the fire.
3. Fuel-efficient with powerful flames: Burns well with wood of any size, whether dry or wet.
4. Automatic firewood ash collection: Simply empty the ash box/container every two weeks—no more messy ash cleanup or flying ash.
5. No chimney is required: the smoke exhaust only needs to be connected to the metal flexible pipe and pass through the wall to the outdoors.
6. Enhanced safety design: Features an independent insulated cast iron firebox lined with explosion-resistant refractory mortars to ensure no safety risks.
7. Modular combined structure: Each functional unit operates independently, making installation, cleaning, disassembly, replacement, and maintenance fast and convenient.
8. Low-voltage stove control system: Significantly reduces the risk of electrical faults, improving the reliability and stability of the control unit.
9. Gas stove flame failure protection: automatically cutting off the gas supply if the flame goes out unexpectedly.
10. All-steel stove body: to ensure the solid stability and long-lasting durability of the stove.
11. Multi-scenario adaptation: Ideal for self-built houses and villas in peri-urban and suburban areas, peri-urban and suburban restaurants, rural self-built houses, rural villas, as well as farmhouse restaurants, private home restaurants, rural kitchens or restaurants, and more.
Specifications of Rongjie/CF combined wood and gas cookstove with oven (HO138)
● Model: HO138
● Product Dimensions: 138 cm (L) × 60 cm (W) × 80 cm (H)
● Package Dimensions: 150 cm (L) × 70 cm (W) × 90 cm (H)
● Net Weight: 122KG
● Fuel Types: LPG/Natural gas/Wood
● Power supply: 220 V 50Hz
● Rated Power: 220V/2500W
● Overall Material: All-steel structure
● Cooktop Surface Materia: High-temperature resistant tempered safety glass
● Cooktop Surface Dimensions: 138 cm (L) × 60 cm (W)
● Stove Cavity Capacity: 58 L Deep Built-in Oven
● Oven Size: 48 cm (W) × 43 cm (D) × 26 cm (H)
● Gas Stove Fuel Types: LPG / Natural gas
● Gas Stove Burner Material: Copper upper section and aluminum lower section
● Gas Stove Heat Output: 5.2 kW | 5.2 kW
● Gas Stove Efficiency: 85%
● Gas Stove Safety: Thermocouple flame failure protection
● Gas Stove Adjustment: Knob
● Gas Stove Clearances to Combustible Materials: 16 cm (Rear) x 40 cm (Sides) x 40 cm (Top)
● Wood Stove Firebox Structure: Dedicated insulation + Independent combustion chamber with air-Intake system—Energy-efficient high-flame wood stove
● Wood Stove Ignition: One-touch ignition system with automatic gas shut-off protection
● Wood Stove Safety: Include a dedicated insulation compartment for heat isolation, a dual solenoid valve protection device for safety, and a forced exhaust fan to ensure efficient ventilation
● Wood Stove Heat Output: 5 to 12 kW (influenced by refueling and firewood types)
● Wood Stove Efficiency: 86%
● Hourly Wood Consumption: 1.5 - 2 kg (Affected by factors such as material type)
● Wood Stove Firebox Opening Size: 15 cm (L) x 12 cm (H)
● Wood Stove Firebox Size/Capacity: dia. 25 cm x 15 cm (H)
● Suitable for Continuous Burning: Yes
● Equipped with Blower Fan: Yes
● Clean Burn Bystems: Yes (primary and secondary air supplies)
● Maximum Wood Length: 32 cm
● Wood Stove Hearth Material: Cast iron + Refractory mortar
● Ash Cleaning Methods and Frequency: Simply empty the ash box/container every two weeks—no more messy ash cleanup or flying ash
● Iron Wok For Firewood Stove: Pre-seasoned and ready-to-use
● Iron Wok Lid: Thickened 304 stainless steel lid with large tempered glass cover
● Chimney Diameter: 90 mm diameter metal flexible duct for exhaust in any direction
● Wood Stove Clearances to Combustible Materials: 10 cm (Rear) x 10 cm (Sides) x 10 cm (Top)
● Warranty: 3 years
Applications of HO138 Rongjie/CF Wood and Gas Hybrid Cook Stove with Built-in Oven
Our hybrid wood and gas cooking stoves provide a clean, reliable, and fuel-efficient cooking solution, ideal for rural kitchens, rural restaurants, farmhouse restaurants, farm-style restaurants, farm stays, suburban kitchens, agro-tourism restaurants, community kitchens, open-air restaurants, private home restaurants, villa kitchens, custom-built home kitchens, Chinese countryside-style restaurants, and more.
Why choose the HO138 wood-and-gas hybrid cooking stove?
The HO138 hybrid wood and gas cook stove is a new-category cookstove that empowers your business to differentiate from the competition, command higher profit margins, and access untapped markets.
Engineered with a safe, highly efficient, and clean combustion system, our HO138 hybrid cooking stoves give you a fundamental advantage in overcoming market saturation and building long-term competitive differentiation.
_____________________________________________________________
If you have any questions or need further information about this multi-fuel (wood and gas) cookstove, please feel free to call us at +86 13326929996 or email us at sales@cookstovefactory.com!
